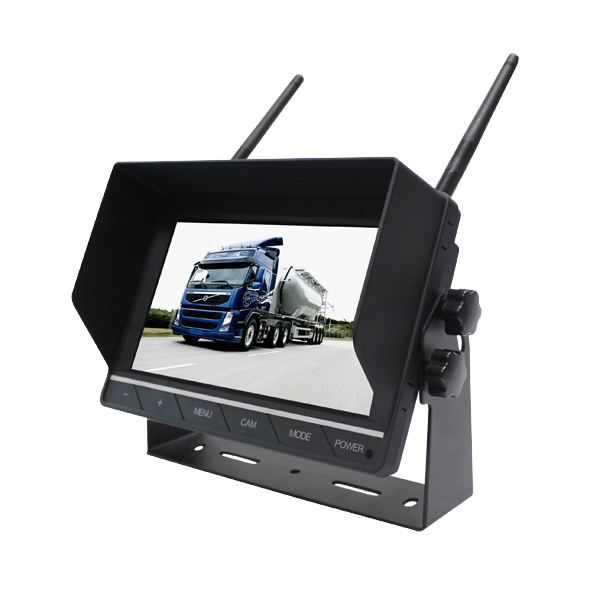

7″ HD Wireless Rear View Monitor (2.4G Hz)
(Model:JY-M745W)
- Application: various vehicles and large mechanical equipments, including ships, trucks, buses, school buses, ambulances, garbage trucks, fire engines, agricultural vehicles, concrete mixer lorries, cranes, excavators, forklifts, road sweepers and hoists etc
- 7 inch high definition rear view car lcd monitor
- 2-CH , 3-CH, 4-CH video input and 4-CH quad is optional
- Auto switch to the working channel when trigger is activated
- Normal, Mirror, Flip and MIR-Flip viewing are available
- Auto pairing happens when camera is activated
- Split mode, auto-scan mode and single-display mode are available
- Auto dim function is available
- Full-function remote control
- On-board speaker
- 2.4G Hz wireless receive
| Aspect Ratio |
16:9 |
| Resolution |
800 x 3 (RGB) x 480 |
| Operating Frequency |
2400~2483.5 MHz |
| Receiving Sensitivity |
-89 dBm |
| Decompression Form |
MPEG4 |
| Transmit Output Power |
17 dBm |
| Modulation |
2.4G FSK/GFSK |
| Time Delay |
120 ms |
| Transmitting Distance |
30-120 M |
| Micro-SD /TF Card |
Max. 128G |
| System Format |
PAL / NTSC |
| Power Supply |
DC 10~32V |
| Power Consumption |
Max. 6W |
| Loudspeaker |
1.5W/8Ω |
| Operating Temperature |
-20~+70ºC |
| Storage Temperature |
-30~+80ºC |
