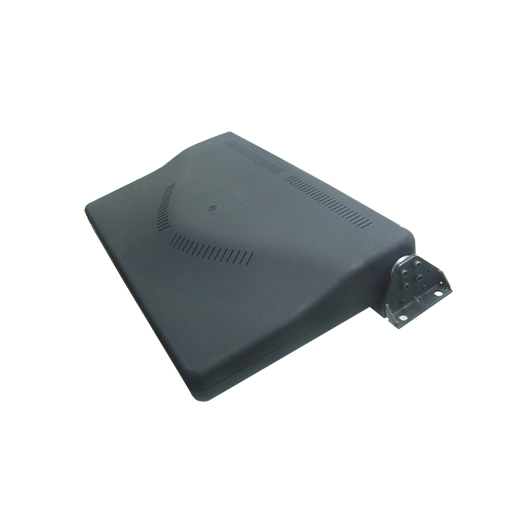

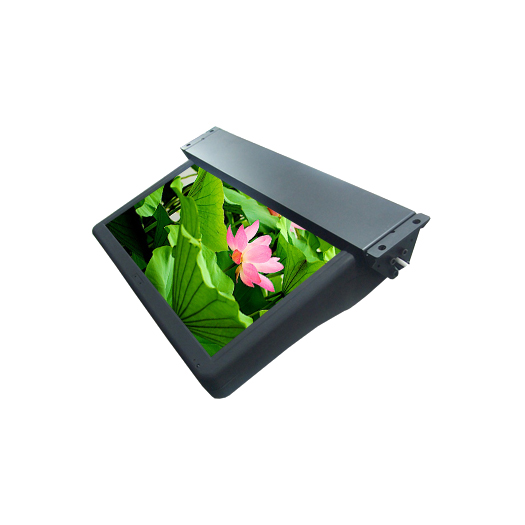

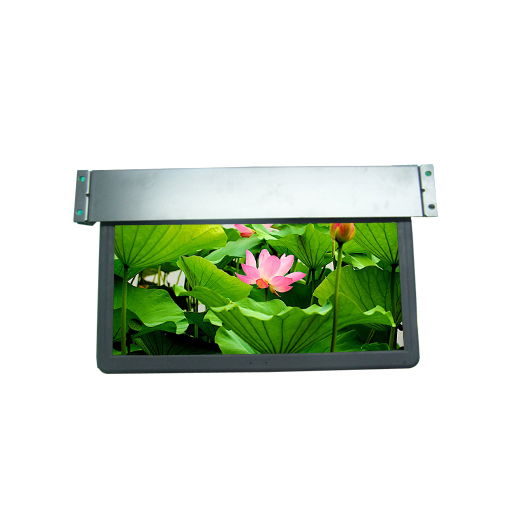

22 inch Smart Motorized LCD Monitor
  • 22 inch TFT LCD monitor
  • Worm gear + planetary gear + Stepper Motor
  • Installation Method: Ceiling, embedded
  • Avoid bumping and scuffing design
  • High lightness, ROHS compliant
  • Intelligently adjust angle, angle memory function
  • Low-noise, high reliability design
  • Compatible with a variety of flip control mode
  • Internal isolation design, anti-interference ability
  • Wide range voltage input
  • The power on logo can be designed for the customers
  • Chinese and English language OSD and the others can be optional
  • Beige, grey and the black color are frequently chosen
  • CVBS video input, Q9/VGA/HDMI are optional.
  • TV tuner and protected glass are also optional
Aspect Ratio 16:9
Screen Size 477.1×268.5 (mm)
Resolution 1920×1080
Brightness ≥350cd/㎡
Contrast 1000:1
Response Time ≤8ms
Flip Noise ≤55dB
View Angle H/V: 170°/160°
Video Format PAL/NTSC
Working Voltage DC24V (15~36V)
Power <40W
Working Environment -20 ℃ ~ +60 ℃
