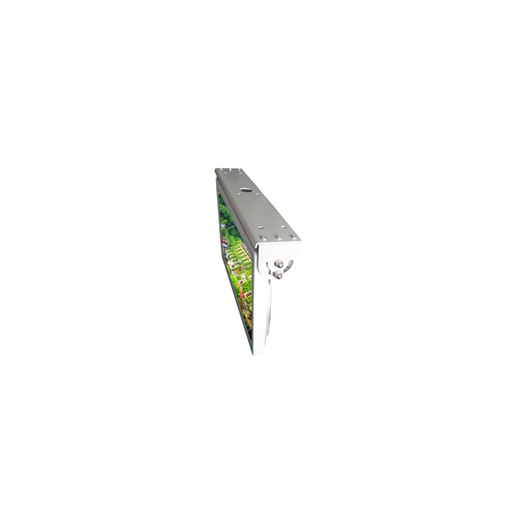

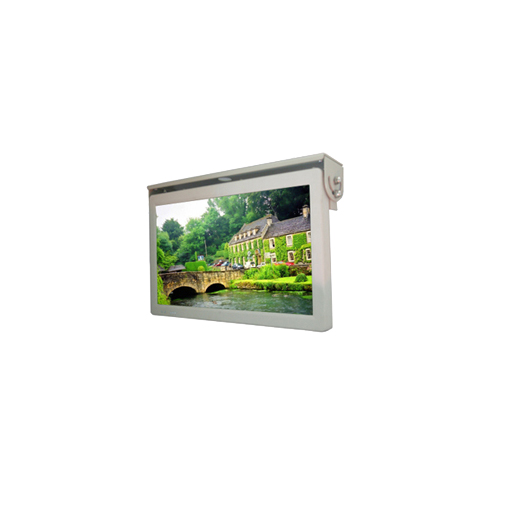

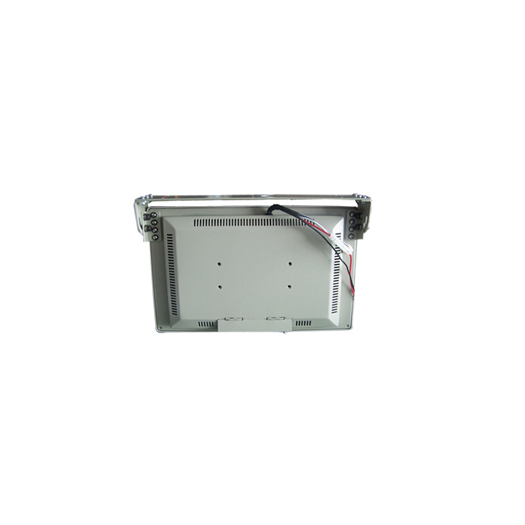

15.6 inch ad LCD Monitor
(Model:HZ-AD15.6)
- 15.6 inch TFT LCD monitor
- Avoid bumping and scuffing design
- Built-in isolation power
- High luminance, broad angle of view
- Enlarge underside angle of view
- The power on logo can be designed for the customers
- Chinese and English language OSD and the others can be optional
- Beige, grey and the black color are frequently chosed
- Support SD and CF card and the max volume of them can achieve to 16G
- Support RM/RMVB/MP3/MP4/VOB/AVI/DIVX/JPG and so on
- Left and right channel audio output (Amplifier is optional)
- CVBS or VGA video output is optional
- Protected glass are also optional
| Aspect Ratio |
16:9 |
| Screen Size |
344.6×194 (mm) |
| Resolution |
1366×768 |
| Brightness |
≥300cd/㎡ |
| Contrast |
450:1 |
| Response Time |
≤8ms |
| View Angle |
H/V: 170°/160° |
| Video Format |
PAL/NTSC |
| Working Voltage |
DC12V/24V |
| Power |
<25W |
| Working Environment |
-20 ℃ ~ +60 ℃ |
